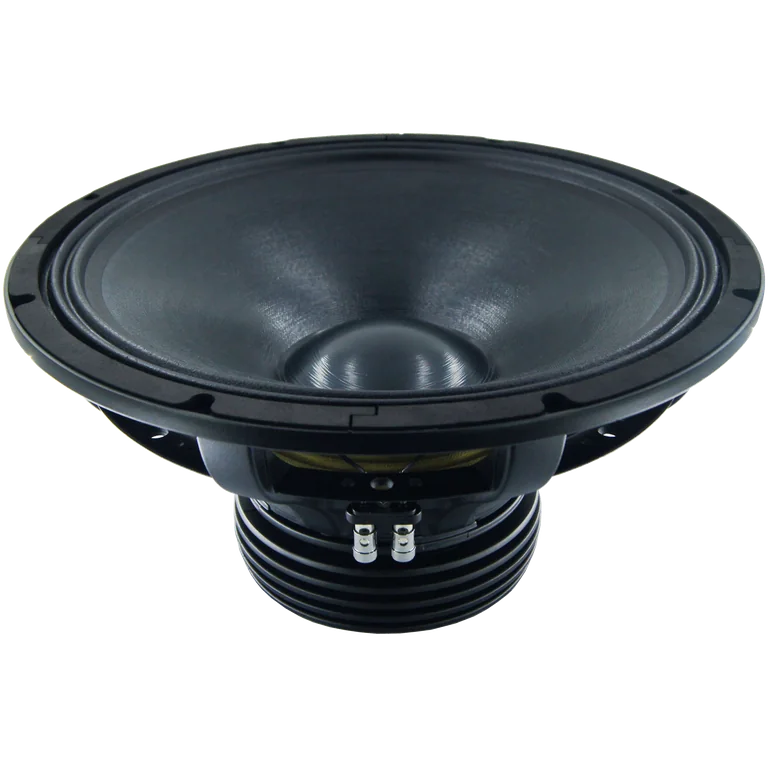

Peerless NCP-1540R01 standard | Fs 54 Hz, 100.1 dB, Qts 0.320 | LoudspeakerLab

Thiele-Small parameters

Fs: 54 Hz; Qts: 0.320; Qes: 0.330; Qms: 7.680; Vas: 86.50 L; Sd: 871.0 cm²; Re: 5.10 Ω; Le: 0.78 mH; Sensitivity: 100.1 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 61 · DI tracking 6 · DI smoothness 30

Usable passband

Scored passband 113 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~44.8 L · Fb 74 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• soundimports — $471.03 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

NCP-1540R01-08

Manufacturer

• Peerless
