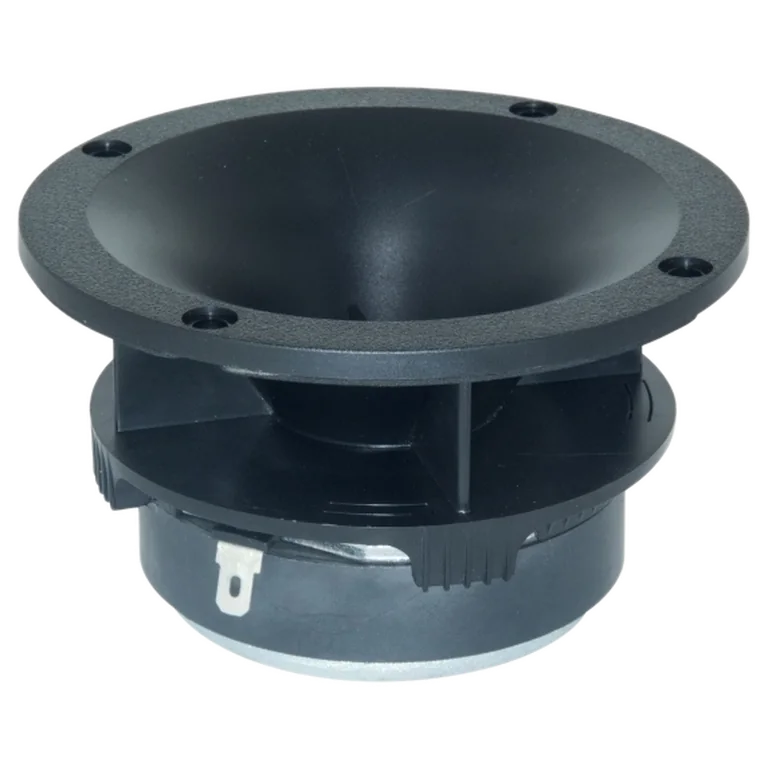

Peerless H25TG05-08 standard | Fs 1800 Hz, 99.7 dB, Qts 1.600 | LoudspeakerLab

Thiele-Small parameters

Fs: 1800 Hz; Qts: 1.600; Qes: 2.900; Qms: 3.540; Vas: 0.00 L; Sd: 5.2 cm²; Re: 6.50 Ω; Le: 0.04 mH; Sensitivity: 99.7 dB; Nominal Z: 6.6 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 2 · DI smoothness 0

Usable passband

Scored passband 3632 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $24.49 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
