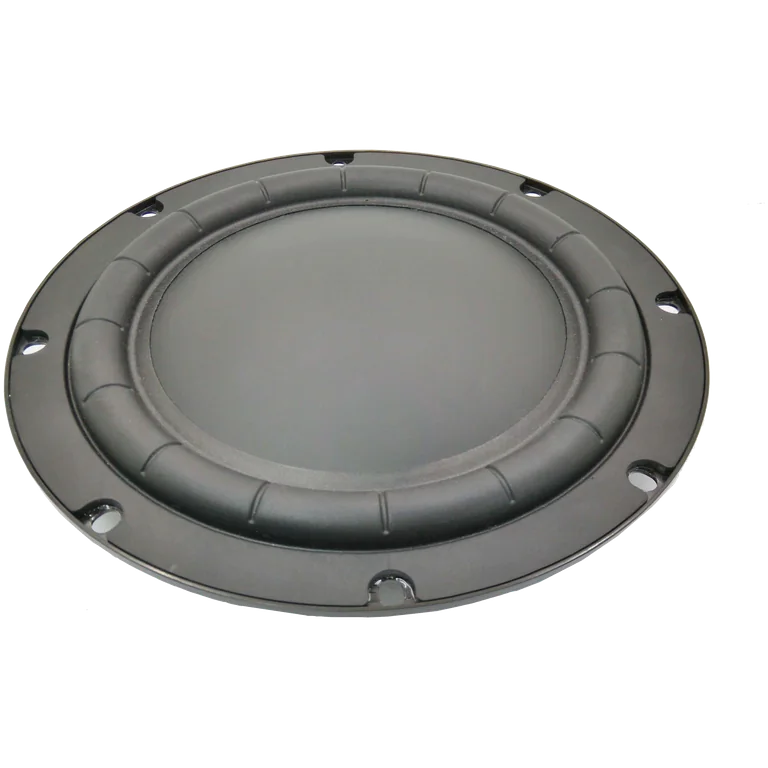

Peerless GBS-200F35CP02 standard | Fs 42 Hz, 84.5 dB, Qts 0.440 | LoudspeakerLab

Thiele-Small parameters

Fs: 42 Hz; Qts: 0.440; Qes: 0.478; Qms: 5.090; Vas: 13.90 L; Sd: 222.0 cm²; Re: 3.40 Ω; Le: 2.33 mH; Sensitivity: 84.5 dB; Nominal Z: 4.7 Ω; Measured range: 10-10000 Hz

Driver quality scores

On-axis flatness 45 · DI tracking 81 · DI smoothness 48

Usable passband

Scored passband 60 Hz–921 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~13.7 L · Fb 43 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $53.98 USD
• soundimports — $57.81 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

GBS-200F35CP02-04

Manufacturer

• Peerless
