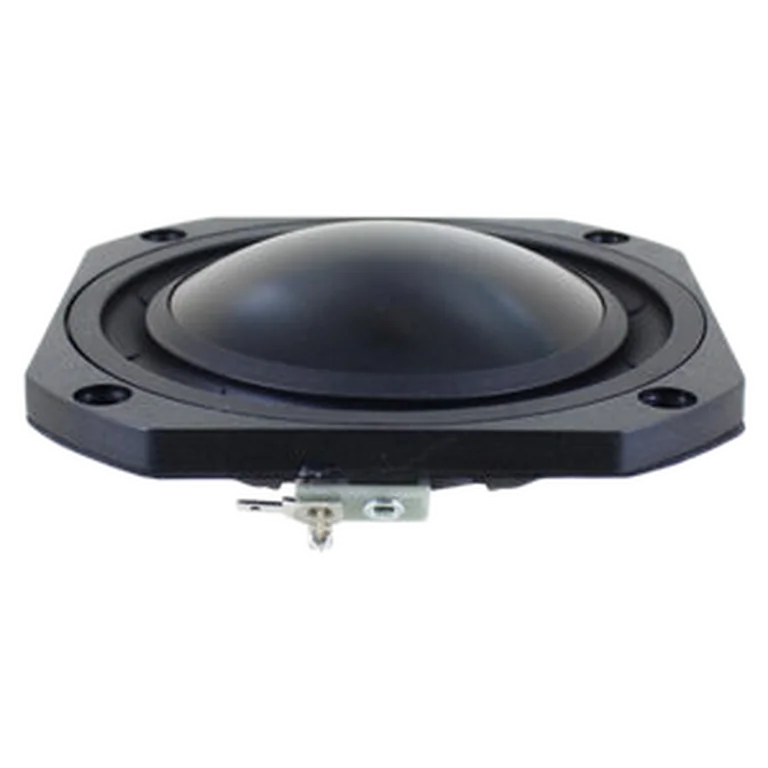

Peerless GBS-115N25AL01 standard | Fs 90 Hz, 84.9 dB, Qts 0.630 | LoudspeakerLab

Thiele-Small parameters

Fs: 90 Hz; Qts: 0.630; Qes: 0.772; Qms: 3.460; Vas: 1.79 L; Sd: 58.1 cm²; Re: 3.30 Ω; Le: 0.34 mH; Sensitivity: 84.9 dB; Nominal Z: 8.2 Ω; Measured range: 20-19945 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 47 · DI smoothness 35

Usable passband

Scored passband 120 Hz–4.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~3.2 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $35.29 USD
• soundimports — $33.02 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

GBS-115N25AL01-04
