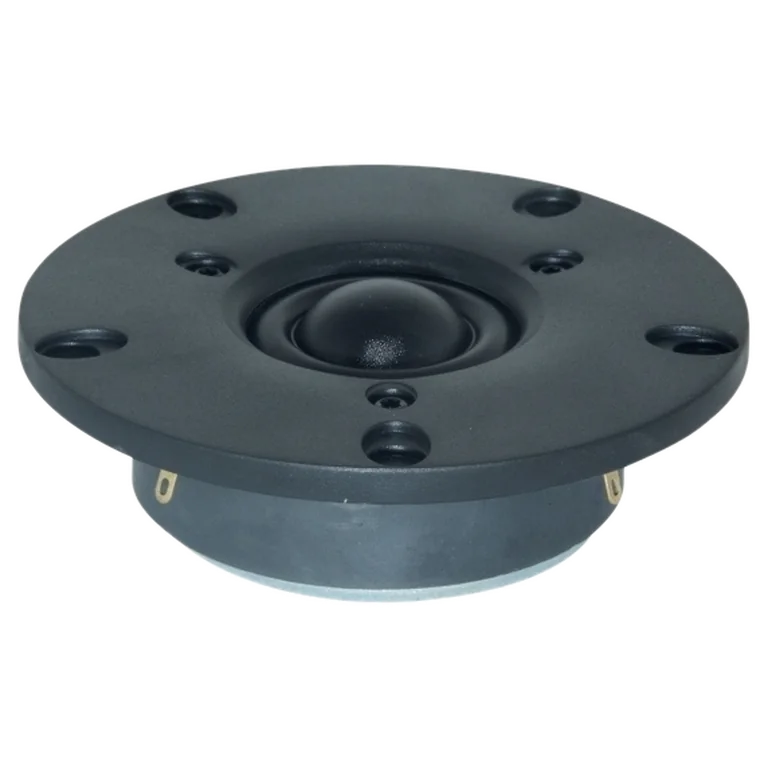

Peerless DX25TG59-04 standard | Fs 590 Hz, 93.2 dB, Qts 0.480 | LoudspeakerLab

Thiele-Small parameters

Fs: 590 Hz; Qts: 0.480; Qes: 0.609; Qms: 2.160; Vas: 0.01 L; Sd: 6.6 cm²; Re: 3.00 Ω; Le: 0.04 mH; Sensitivity: 93.2 dB; Nominal Z: 3.5 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 0 · DI smoothness 34

Usable passband

Scored passband 1004 Hz–17.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Peerless- Tarkus remake

Where to buy

• blackdotaudio — $141.69 PLN
• loudspeakershop — $155.00 PLN
• parts_express — $28.49 USD
• soundimports — $32.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
