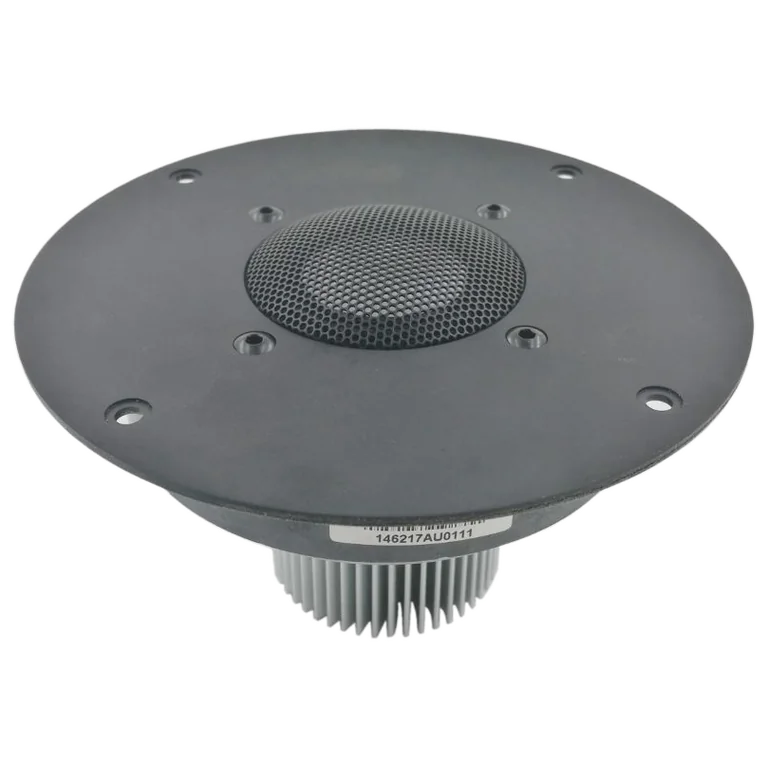

Peerless DA32TX00-08 standard | Fs 630 Hz, 88.8 dB, Qts 0.460 | LoudspeakerLab

Thiele-Small parameters

Fs: 630 Hz; Qts: 0.460; Qes: 0.621; Qms: 1.730; Vas: 0.03 L; Sd: 12.0 cm²; Re: 6.80 Ω; Le: 0.03 mH; Sensitivity: 88.8 dB; Nominal Z: 7.6 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 85 · DI tracking 56 · DI smoothness 32

Usable passband

Scored passband 1283 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $83.39 USD
• soundimports — $199.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
