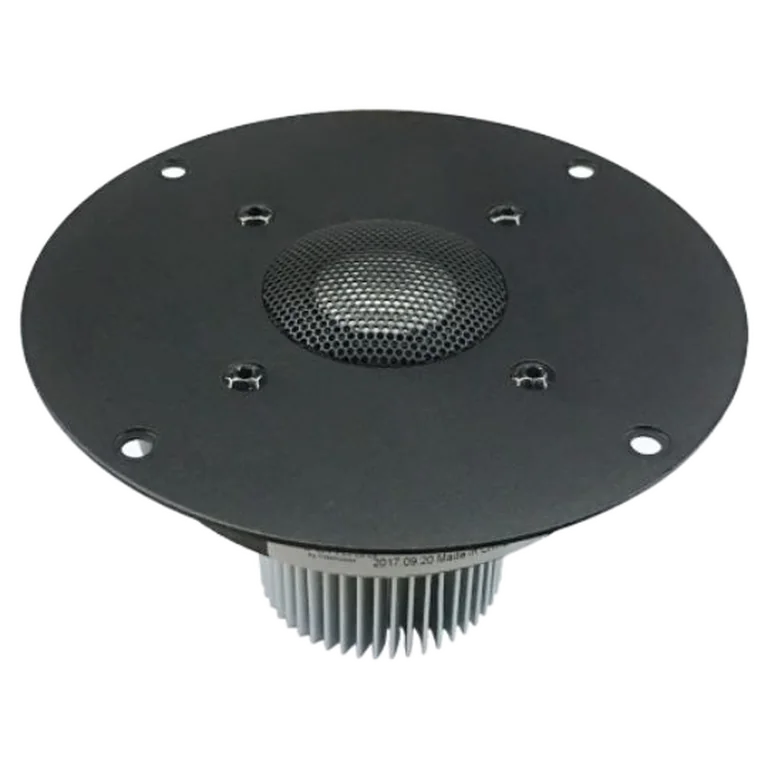

Peerless DA25TX00-08 standard | Fs 640 Hz, 88.8 dB, Qts 0.580 | LoudspeakerLab

Thiele-Small parameters

Fs: 640 Hz; Qts: 0.580; Qes: 0.829; Qms: 1.870; Vas: 0.01 L; Sd: 6.6 cm²; Re: 6.90 Ω; Le: 0.03 mH; Sensitivity: 88.8 dB; Nominal Z: 7.6 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 85 · DI tracking 56 · DI smoothness 32

Usable passband

Scored passband 1283 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $60.49 USD
• soundimports — $140.45 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
