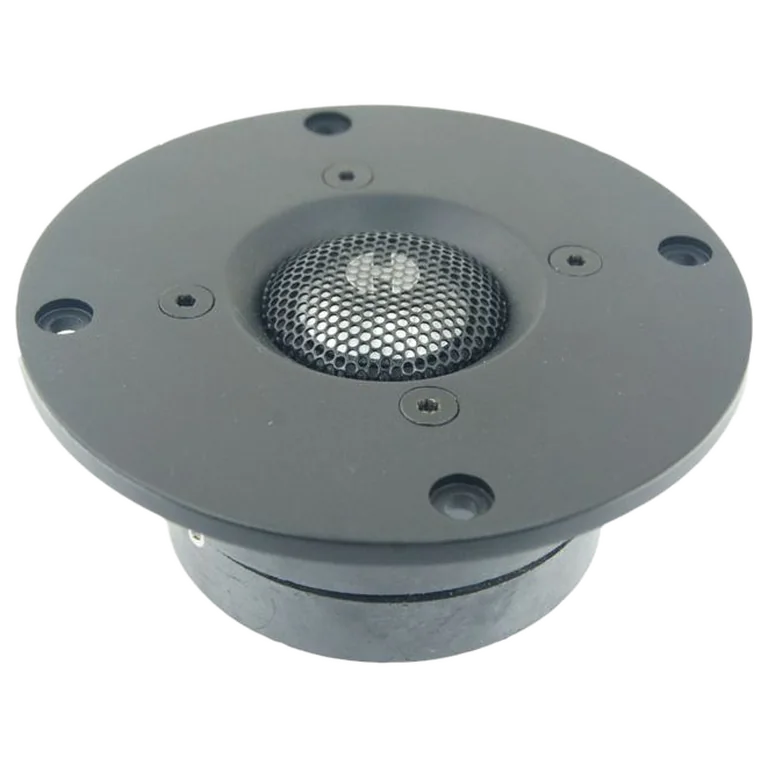

Peerless DA25BG08-06 standard | Fs 710 Hz, 91.4 dB, Qts 0.510 | LoudspeakerLab

Thiele-Small parameters

Fs: 710 Hz; Qts: 0.510; Qes: 0.704; Qms: 1.780; Vas: 0.01 L; Sd: 6.6 cm²; Re: 5.20 Ω; Le: 0.02 mH; Sensitivity: 91.4 dB; Nominal Z: 6.1 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 15 · DI smoothness 19

Usable passband

Scored passband 1400 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $39.98 USD
• rumoh — $39.90 EUR
• soundimports — $39.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
