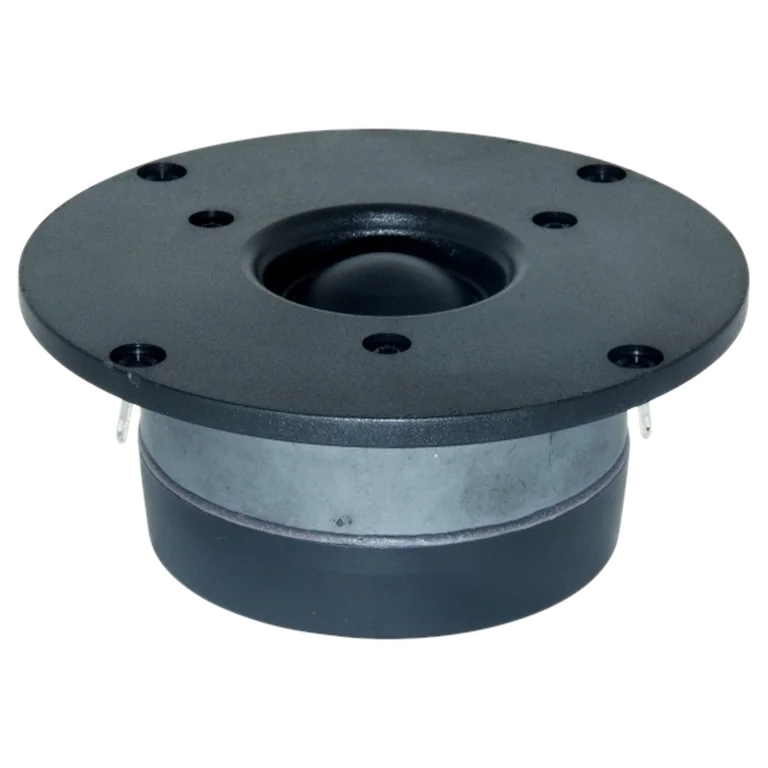

Peerless D27TG35-06 standard | Fs 900 Hz, 91.8 dB, Qts 0.540 | LoudspeakerLab

Thiele-Small parameters

Fs: 900 Hz; Qts: 0.540; Qes: 1.030; Qms: 1.130; Vas: 0.01 L; Sd: 7.1 cm²; Re: 4.90 Ω; Le: 0.04 mH; Sensitivity: 91.8 dB; Nominal Z: 5.4 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 79 · DI tracking 42 · DI smoothness 11

Usable passband

Scored passband 1923 Hz–13.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $32.69 USD
• solen — $39.93 CAD
• soundimports — $39.95 EUR
• wilmslow — $38.40 GBP

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
