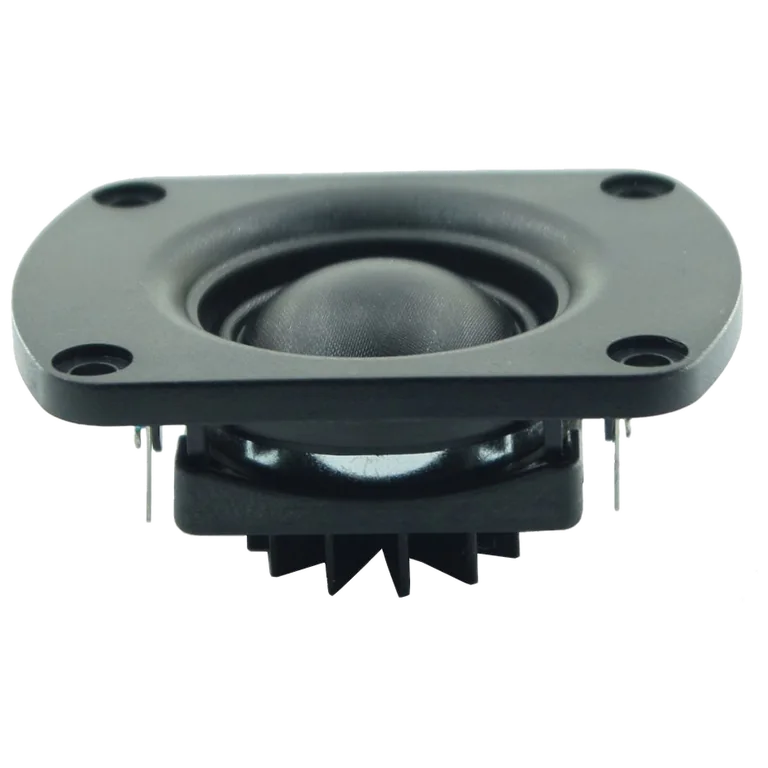

Peerless D26NC56-06 standard | Fs 1700 Hz, 91.0 dB, Qts 1.000 | LoudspeakerLab

Thiele-Small parameters

Fs: 1700 Hz; Qts: 1.000; Qes: 3.750; Qms: 1.360; Vas: 0.00 L; Sd: 7.1 cm²; Re: 4.70 Ω; Le: 0.03 mH; Sensitivity: 91.0 dB; Nominal Z: 4.8 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 1 · DI smoothness 21

Usable passband

Scored passband 1463 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $24.49 USD
• soundimports — $24.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
