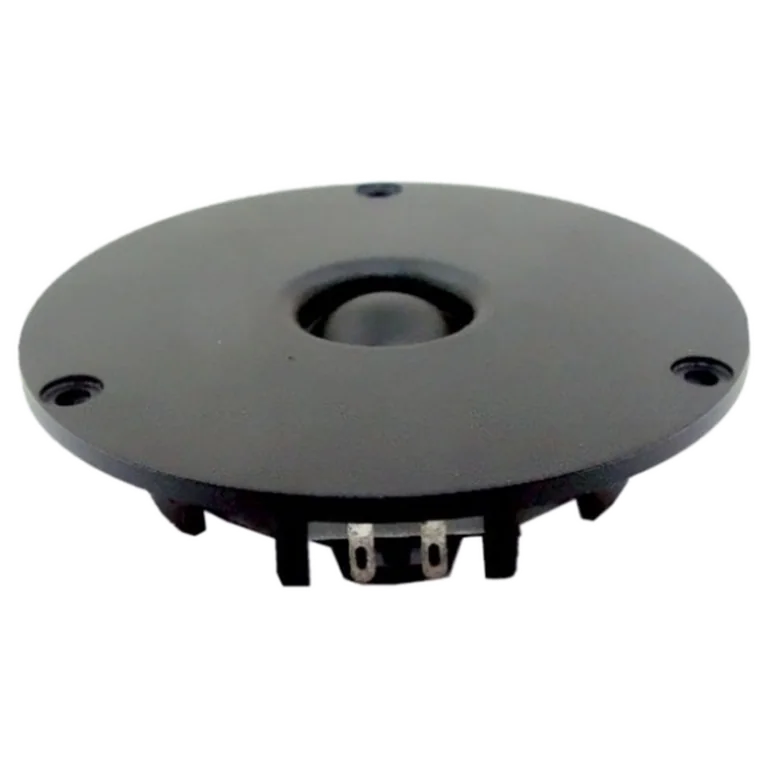

Peerless D19TD05-08 standard | Fs 1900 Hz, 89.3 dB, Qts 0.770 | LoudspeakerLab

Thiele-Small parameters

Fs: 1900 Hz; Qts: 0.770; Qes: 2.290; Qms: 1.160; Vas: 0.00 L; Sd: 4.2 cm²; Re: 6.30 Ω; Le: 0.05 mH; Sensitivity: 89.3 dB; Nominal Z: 6.4 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 31 · DI smoothness 20

Usable passband

Scored passband 3632 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $21.79 USD
• soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
