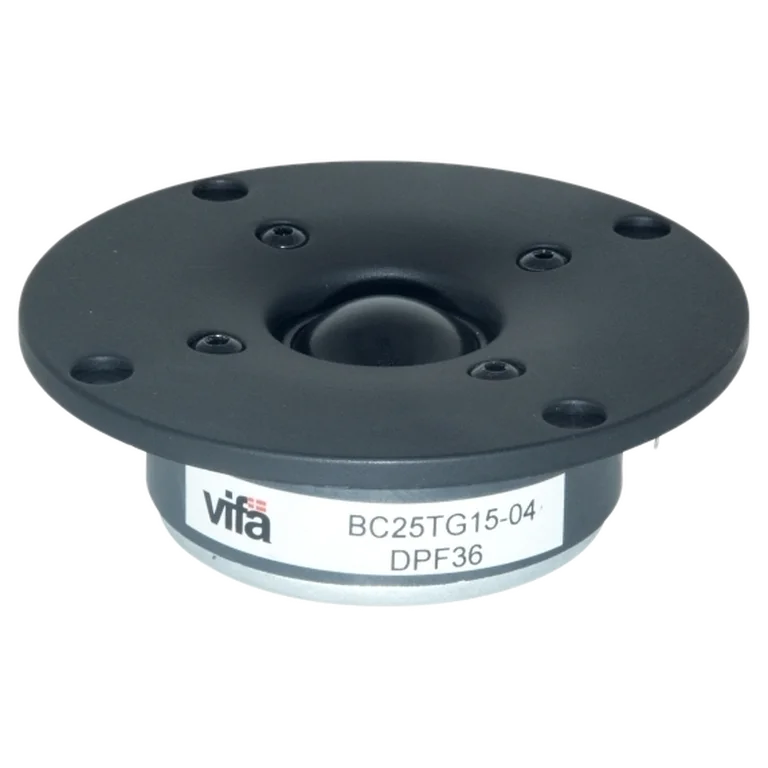

Peerless BC25TG15-04 standard | Fs 1100 Hz, 93.2 dB, Qts 0.980 | LoudspeakerLab

Thiele-Small parameters

Fs: 1100 Hz; Qts: 0.980; Qes: 1.530; Qms: 2.750; Vas: 0.00 L; Sd: 6.2 cm²; Re: 3.20 Ω; Le: 0.03 mH; Sensitivity: 93.2 dB; Nominal Z: 3.3 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 31 · DI smoothness 24

Usable passband

Scored passband 2222 Hz–16.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $128.79 PLN
• loudspeakershop — $112.00 PLN
• parts_express — $17.79 USD
• soundimports — $29.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
