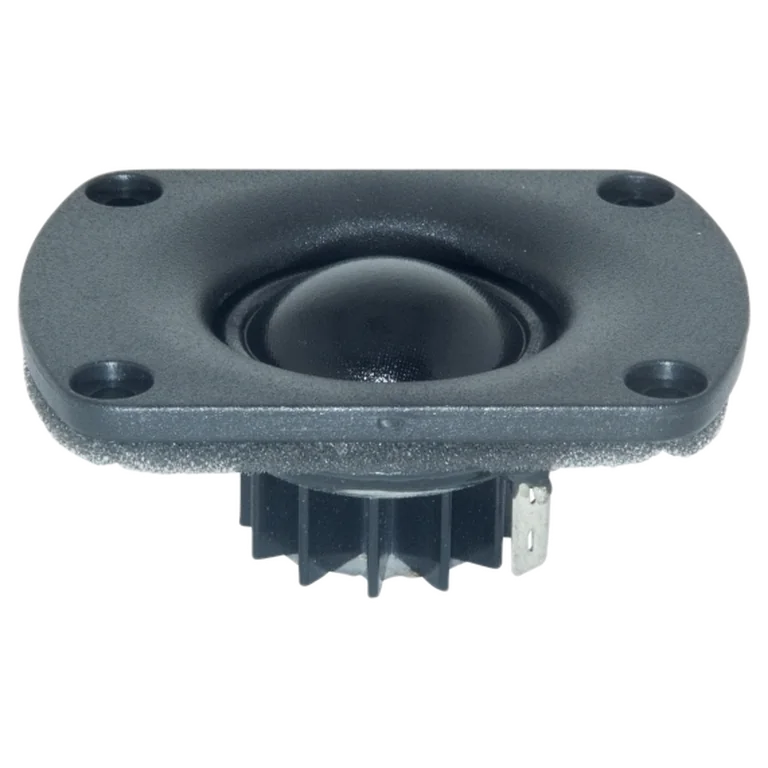

Peerless BC25SC55-04 standard | Fs 1400 Hz, 93.7 dB, Qts 1.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 1400 Hz; Qts: 1.300; Qes: 2.070; Qms: 3.600; Vas: 0.00 L; Sd: 7.1 cm²; Re: 3.00 Ω; Le: 0.03 mH; Sensitivity: 93.7 dB; Nominal Z: 3.1 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 37 · DI smoothness 16

Usable passband

Scored passband 2800 Hz–15.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $23.98 USD
• soundimports — $18.97 EUR
• theloudspeakerkit — $42.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
