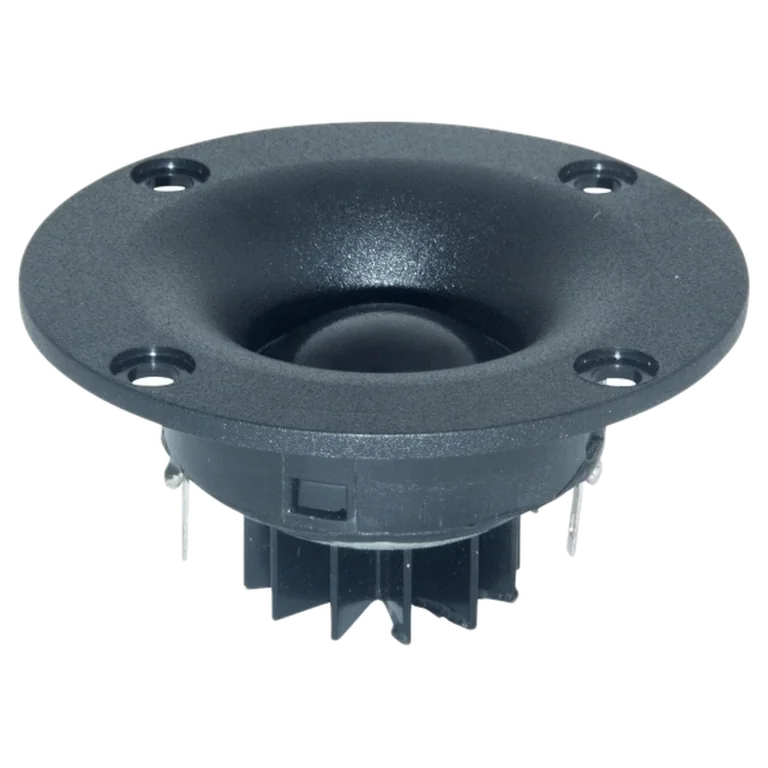

Peerless BC25SC08-08 standard | Fs 1700 Hz, 96.1 dB, Qts 1.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 1700 Hz; Qts: 1.400; Qes: 2.030; Qms: 4.420; Vas: 0.00 L; Sd: 6.6 cm²; Re: 6.60 Ω; Le: 0.05 mH; Sensitivity: 96.1 dB; Nominal Z: 6.7 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 82 · DI tracking 54 · DI smoothness 27

Usable passband

Scored passband 3330 Hz–15.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $128.79 PLN
• soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
