HiVi D6 standard | Fs 43 Hz, 85.0 dB, Qts 0.450 | LoudspeakerLab

HiVi D6 standard measurements on LoudspeakerLab. 85.0 dB sensitivity. Fs 43 Hz. Qts 0.450. Also known as D6.8B. Evidence grade B (69.6/100).

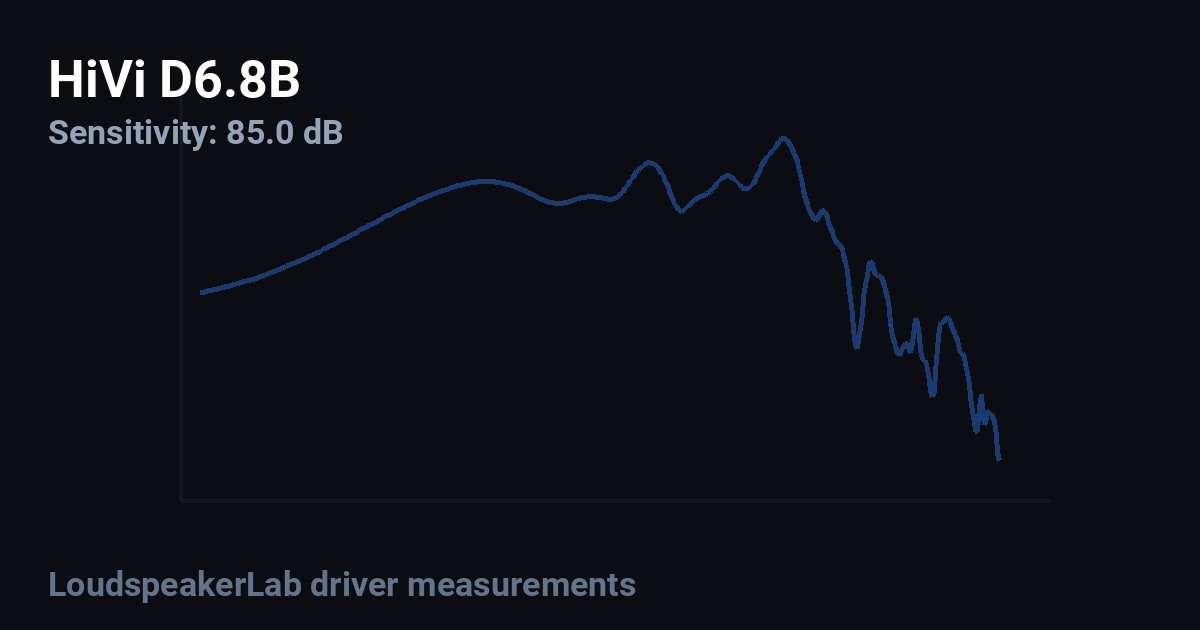

Preview

Thiele-Small parameters

Fs: 43 Hz; Qts: 0.450; Qes: 0.490; Qms: 5.210; Vas: 13.59 L; Sd: 121.2 cm²; Re: 6.50 Ω; Sensitivity: 85.0 dB; Nominal Z: 7.5 Ω; Measured range: 20-19746 Hz

Driver quality scores

On-axis flatness 54

Usable passband

Scored passband 69 Hz–4.0 kHz

Measurement coverage

Measured profiles

Recommended enclosure

Vented ~14.2 L · Fb 43 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: B (69.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

D6.8B
