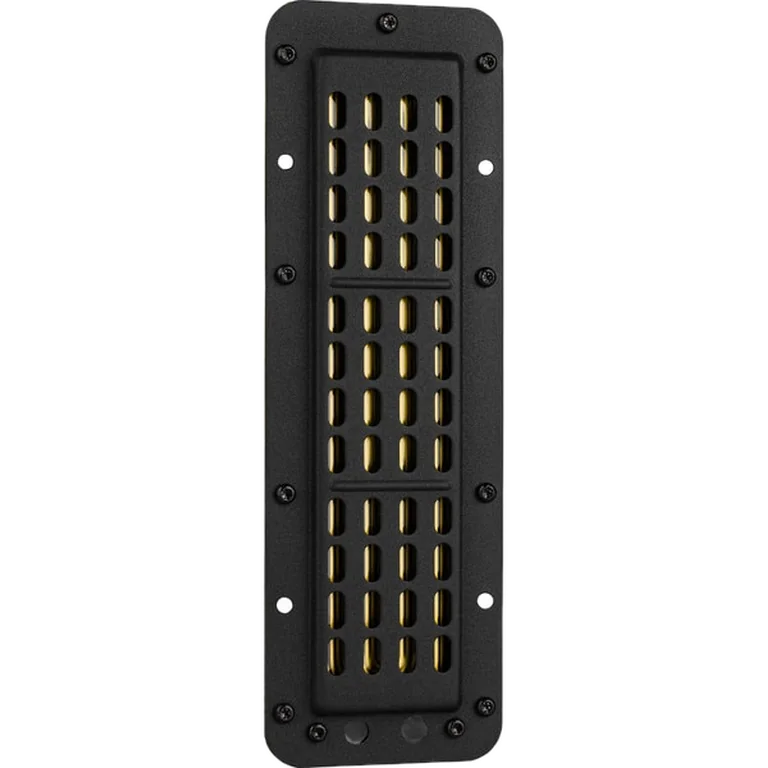

GRS PT6816-8 standard | Fs 396 Hz, 96.7 dB, Qts 4.566 | LoudspeakerLab

Name: GRS PT6816-8 standard | Fs 396 Hz, 96.7 dB, Qts 4.566 | LoudspeakerLab
Brand: GRS
SKU: PT6816-8
Price: 56.99 USD
Availability: InStock

GRS PT6816-8 standard measurements on LoudspeakerLab. 96.7 dB sensitivity. Fs 396 Hz. Qts 4.566. Evidence grade C+ (56.2/100).

Thiele-Small parameters

Fs: 396 Hz; Qts: 4.566; Qes: 17.410; Qms: 6.189; Vas: 0.00 L; Re: 6.53 Ω; Le: 0.00 mH; Sensitivity: 96.7 dB; Nominal Z: 8.0 Ω; Measured range: 69-20000 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 85 · DI smoothness 57

Usable passband

Scored passband 785 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

spec sheet (spec_sheet)

Where to buy

parts_express — $56.99 USD
solen — $88.20 CAD
soundimports — $69.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
