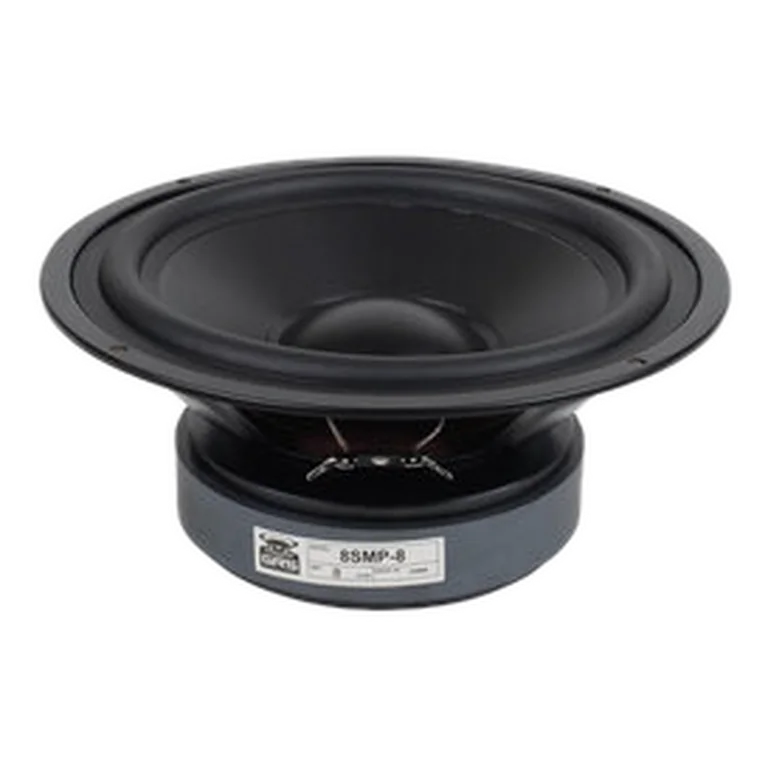

GRS 8SMP-8 standard | Fs 41 Hz, 93.2 dB, Qts 0.464 | LoudspeakerLab

Name: GRS 8SMP-8 standard | Fs 41 Hz, 93.2 dB, Qts 0.464 | LoudspeakerLab
Brand: GRS
SKU: 8SMP-8
Price: 39.99 USD
Availability: InStock

GRS 8SMP-8 standard measurements on LoudspeakerLab. 93.2 dB sensitivity. Fs 41 Hz. Qts 0.464. Evidence grade C+ (56.8/100).

Thiele-Small parameters

Fs: 41 Hz; Qts: 0.464; Qes: 0.555; Qms: 2.848; Vas: 32.54 L; Sd: 213.8 cm²; Re: 5.82 Ω; Le: 0.41 mH; Sensitivity: 93.2 dB; Nominal Z: 6.5 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 54 · DI tracking 69 · DI smoothness 43

Usable passband

Scored passband 62 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~36.2 L · Fb 40 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

parts_express — $39.99 USD
solen — $50.72 CAD
soundimports — $41.28 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
