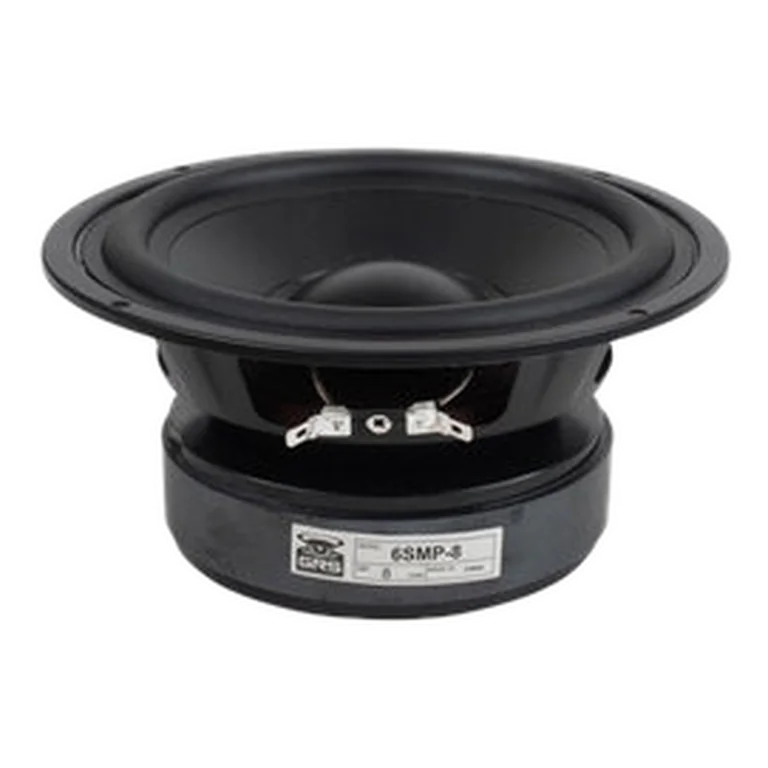

GRS 6SMP-8 standard | Fs 47 Hz, 87.6 dB, Qts 0.449 | LoudspeakerLab

Name: GRS 6SMP-8 standard | Fs 47 Hz, 87.6 dB, Qts 0.449 | LoudspeakerLab
Brand: GRS
SKU: 6SMP-8
Price: 27.99 USD
Availability: InStock

GRS 6SMP-8 standard measurements on LoudspeakerLab. 87.6 dB sensitivity. Fs 47 Hz. Qts 0.449. Evidence grade C+ (56.8/100).

Thiele-Small parameters

Fs: 47 Hz; Qts: 0.449; Qes: 0.539; Qms: 2.699; Vas: 14.53 L; Sd: 136.8 cm²; Re: 6.06 Ω; Le: 0.43 mH; Sensitivity: 87.6 dB; Nominal Z: 6.9 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 51 · DI tracking 55 · DI smoothness 31

Usable passband

Scored passband 69 Hz–4.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~15.1 L · Fb 47 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

parts_express — $27.99 USD
solen — $36.46 CAD
soundimports — $33.02 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
