GRS 1TD2-8 standard | Fs 2531 Hz, 90.0 dB, Qts 1.450 | LoudspeakerLab

GRS 1TD2-8 standard measurements on LoudspeakerLab. 90.0 dB sensitivity. Fs 2531 Hz. Qts 1.450. Evidence grade B (68.4/100).

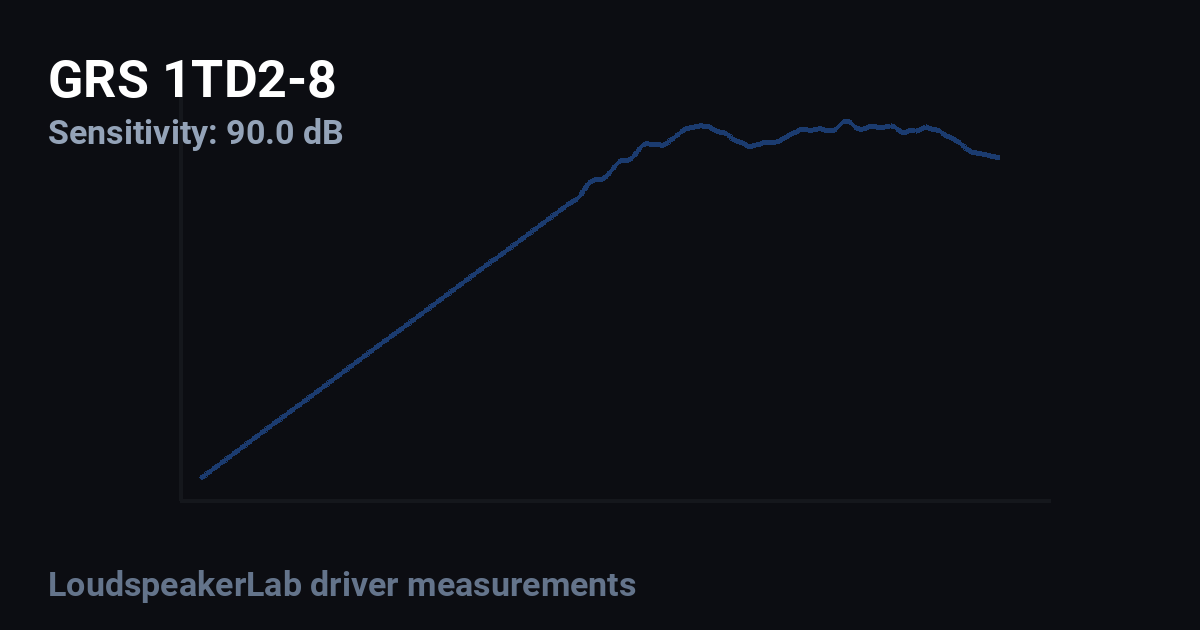

Preview

Thiele-Small parameters

Fs: 2531 Hz; Qts: 1.450; Qes: 1.910; Qms: 5.940; Re: 7.32 Ω; Le: 0.25 mH; Sensitivity: 90.0 dB; Nominal Z: 7.8 Ω; Measured range: 10-20000 Hz

Usable passband

Scored passband 5062 Hz–2.1 kHz

Measurement coverage

Measured profiles

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: B (68.4/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
