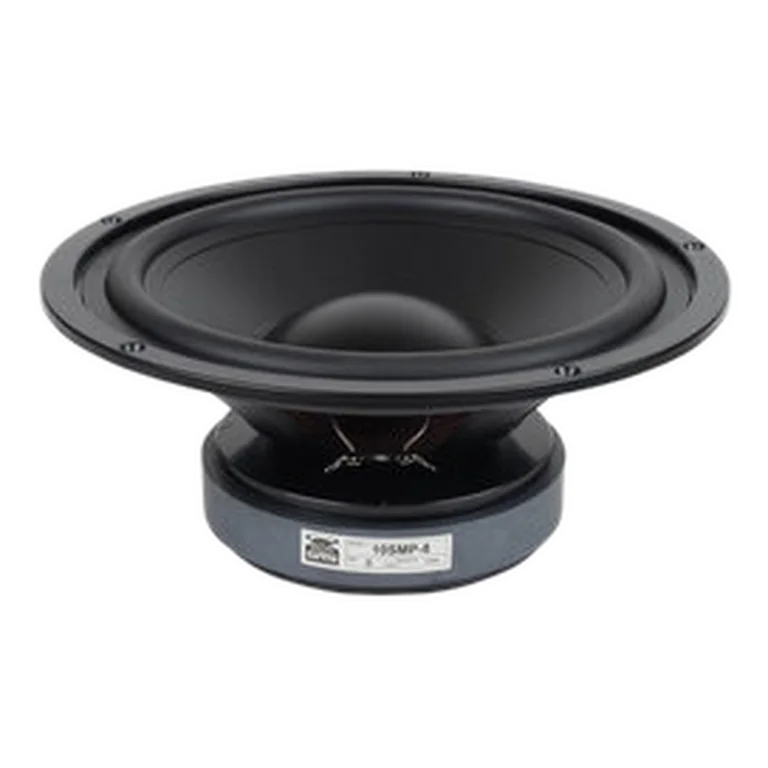

GRS 10SMP-8 standard | Fs 29 Hz, 92.1 dB, Qts 0.580 | LoudspeakerLab

Thiele-Small parameters

Fs: 29 Hz; Qts: 0.580; Qes: 0.735; Qms: 2.748; Vas: 80.96 L; Sd: 346.4 cm²; Re: 6.10 Ω; Le: 0.46 mH; Sensitivity: 92.1 dB; Nominal Z: 6.4 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 55 · DI tracking 63 · DI smoothness 53

Usable passband

Scored passband 45 Hz–2.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~153.6 L · Fb 24 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $51.99 USD
• solen — $67.10 CAD
• soundimports — $57.81 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
