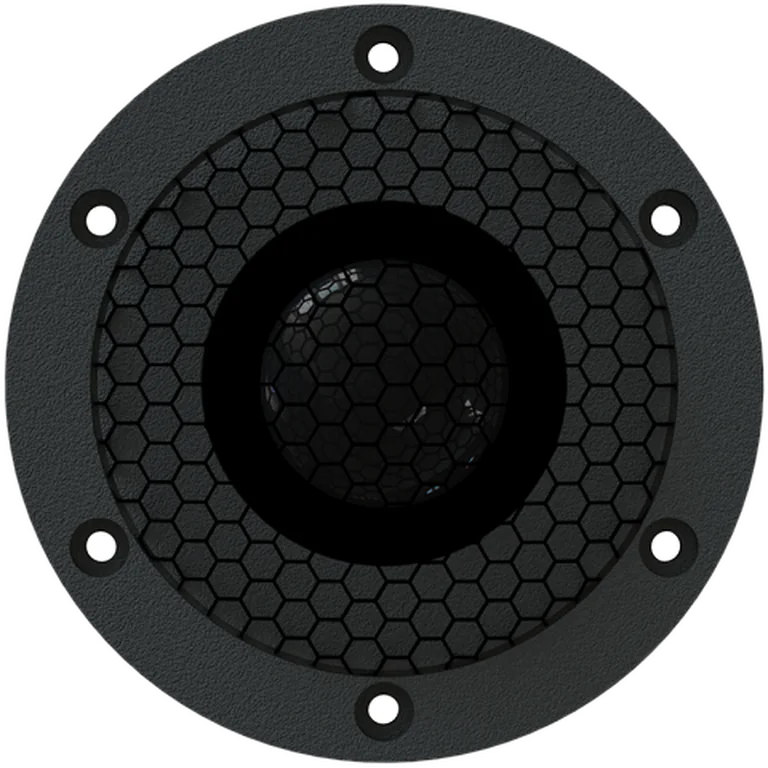

BlieSMa T34T-4 tweeter | Fs 770 Hz, 96.2 dB, Qts 0.330 | LoudspeakerLab

Thiele-Small parameters

Fs: 770 Hz; Qts: 0.330; Qes: 0.410; Qms: 1.950; Sd: 10.5 cm²; Re: 3.30 Ω; Le: 0.01 mH; Sensitivity: 96.2 dB; Nominal Z: 3.3 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 56 · DI smoothness 35

Usable passband

Scored passband 1526 Hz–15.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• solen — $703.00 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
