BlieSMa T34S-4 tweeter | Fs 760 Hz, 97.7 dB, Qts 0.270 | LoudspeakerLab

BlieSMa T34S-4 tweeter measurements on LoudspeakerLab. 97.7 dB sensitivity. Fs 760 Hz. Qts 0.270. Evidence grade C+ (55.8/100).

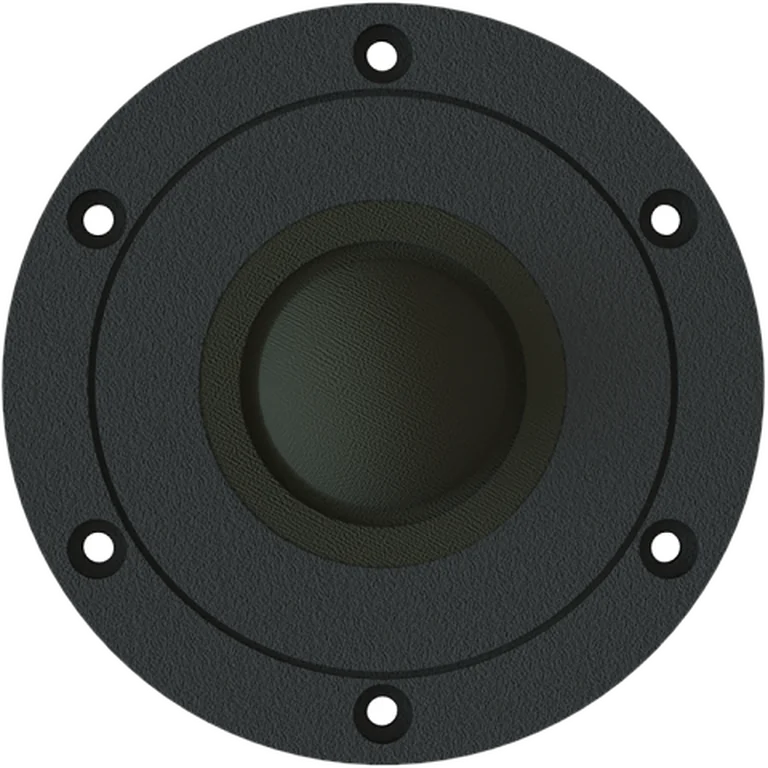

Preview

Thiele-Small parameters

Fs: 760 Hz; Qts: 0.270; Qes: 0.340; Qms: 1.300; Sd: 10.5 cm²; Re: 3.30 Ω; Le: 0.01 mH; Sensitivity: 97.7 dB; Nominal Z: 3.7 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 32 · DI smoothness 43

Usable passband

Scored passband 2069 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
