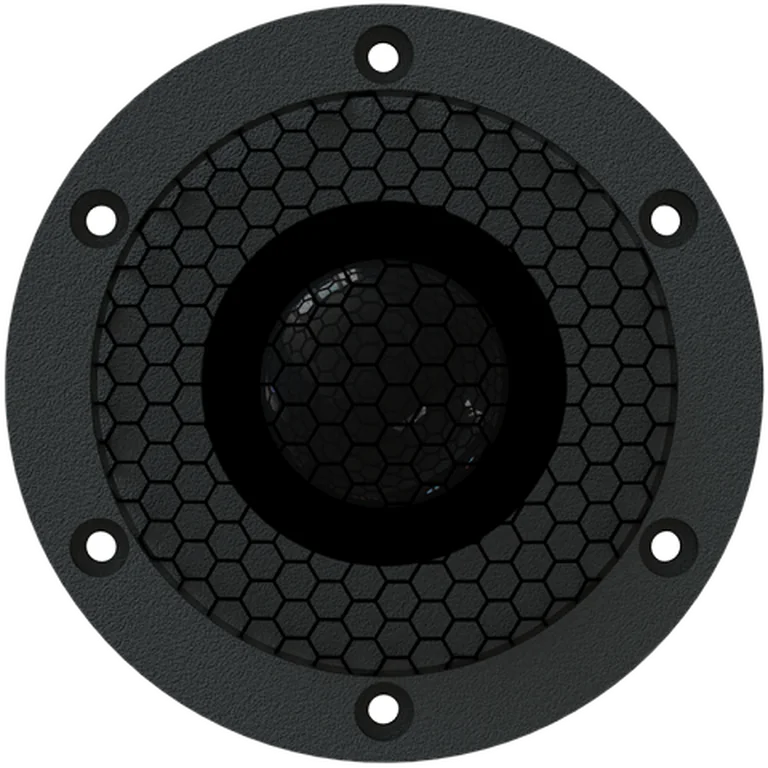

BlieSMa T34D-4 tweeter | Fs 710 Hz, 95.9 dB, Qts 0.270 | LoudspeakerLab

Thiele-Small parameters

Fs: 710 Hz; Qts: 0.270; Qes: 0.350; Qms: 1.220; Sd: 10.5 cm²; Re: 3.30 Ω; Le: 0.01 mH; Sensitivity: 95.9 dB; Nominal Z: 3.1 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 60 · DI smoothness 44

Usable passband

Scored passband 1400 Hz–14.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
