BlieSMa T34A-4 tweeter | Fs 790 Hz, 95.3 dB, Qts 0.350 | LoudspeakerLab

BlieSMa T34A-4 tweeter measurements on LoudspeakerLab. 95.3 dB sensitivity. Fs 790 Hz. Qts 0.350. Evidence grade C+ (55.8/100).

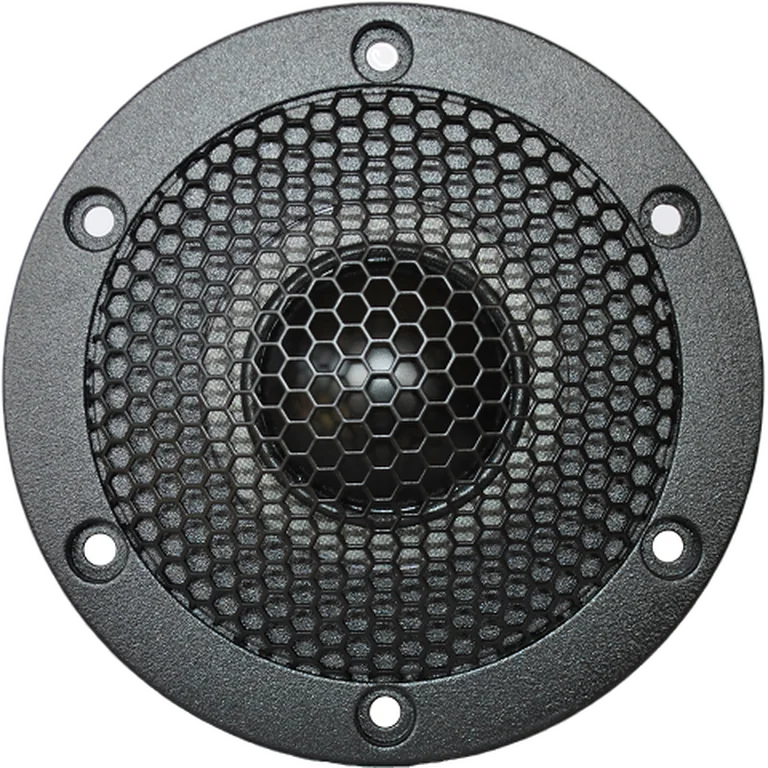

Preview

Thiele-Small parameters

Fs: 790 Hz; Qts: 0.350; Qes: 0.420; Qms: 2.100; Sd: 10.5 cm²; Re: 3.30 Ω; Le: 0.01 mH; Sensitivity: 95.3 dB; Nominal Z: 3.5 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 81 · DI tracking 77 · DI smoothness 49

Usable passband

Scored passband 1571 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
