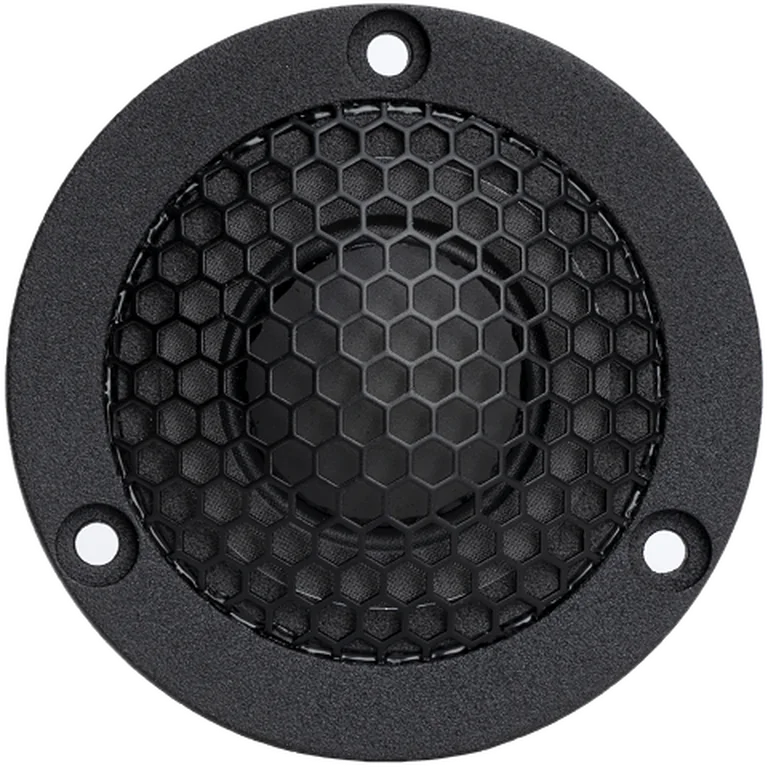

BlieSMa T25D-6 tweeter | Fs 870 Hz, 90.9 dB, Qts 0.510 | LoudspeakerLab

BlieSMa T25D-6 tweeter measurements on LoudspeakerLab. 90.9 dB sensitivity. Fs 870 Hz. Qts 0.510. Evidence grade C+ (55.8/100).

Thiele-Small parameters

Fs: 870 Hz; Qts: 0.510; Qes: 0.820; Qms: 1.350; Sd: 5.7 cm²; Re: 5.20 Ω; Le: 0.01 mH; Sensitivity: 90.9 dB; Nominal Z: 5.3 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 64 · DI smoothness 45

Usable passband

Scored passband 1713 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

IEC baffle (spec_sheet)

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

BlieSMa
