BlieSMa T25B-6 tweeter | Fs 1050 Hz, 93.1 dB, Qts 0.510 | LoudspeakerLab

BlieSMa T25B-6 tweeter measurements on LoudspeakerLab. 93.1 dB sensitivity. Fs 1050 Hz. Qts 0.510. Evidence grade C+ (55.8/100).

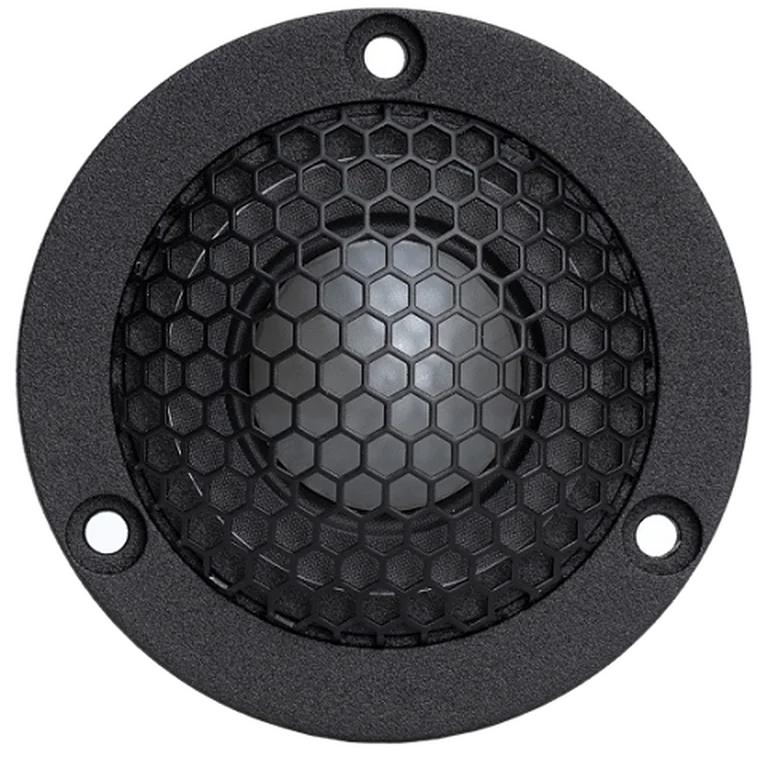

Preview

Thiele-Small parameters

Fs: 1050 Hz; Qts: 0.510; Qes: 0.820; Qms: 1.350; Sd: 5.7 cm²; Re: 5.20 Ω; Le: 0.01 mH; Sensitivity: 93.1 dB; Nominal Z: 5.3 Ω; Measured range: 100-20000 Hz

Driver quality scores

On-axis flatness 79 · DI tracking 66 · DI smoothness 41

Usable passband

Scored passband 2098 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (55.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
