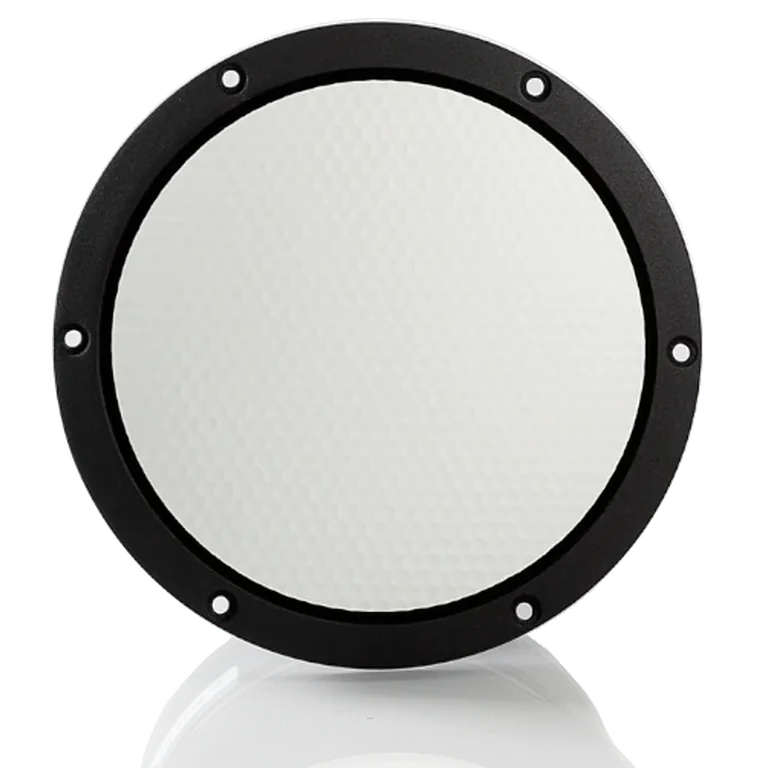

Accuton AS168-9 standard | Fs 27 Hz, 83.8 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 27 Hz; Qts: 0.350; Qes: 0.380; Qms: 4.350; Vas: 35.50 L; Sd: 161.0 cm²; Re: 9.00 Ω; Le: 1.00 mH; Sensitivity: 83.8 dB; Nominal Z: 11.6 Ω; Measured range: 20-9782 Hz

Driver quality scores

On-axis flatness 71 · THD 84

Usable passband

Scored passband 58 Hz–1.7 kHz

Measurement coverage

Distortion measurements · Spec-sheet profiles

Recommended enclosure

Vented ~21.9 L · Fb 34 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $1195.04 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (53.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

AS168-9-470
