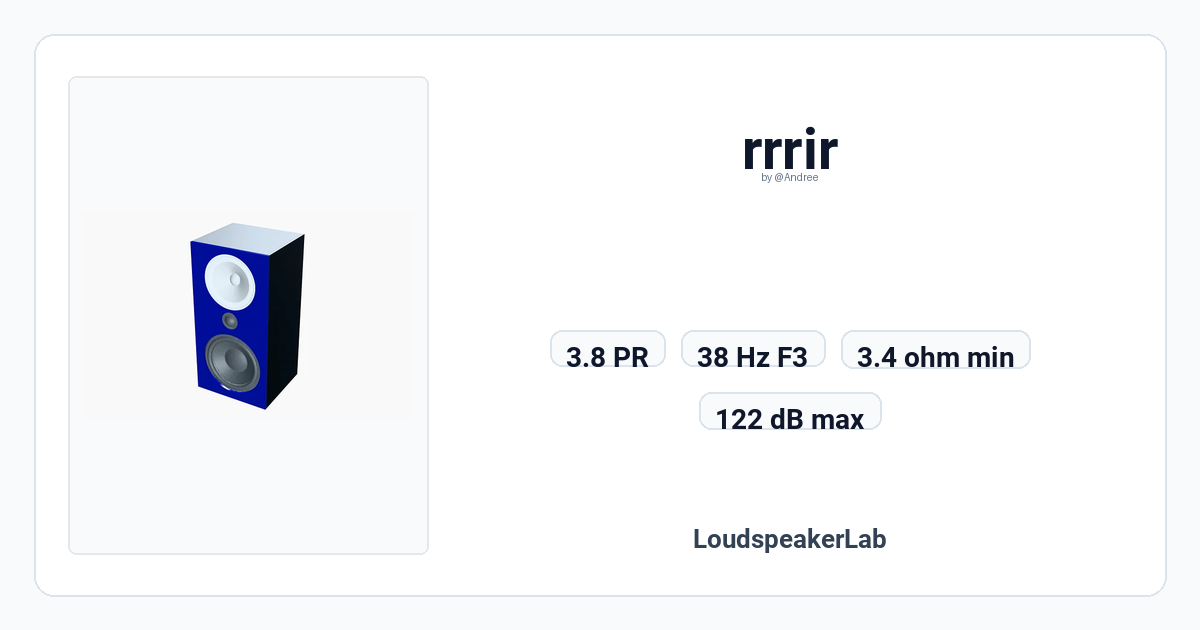

rrrir - LoudspeakerLab Design

Design summary

Preference rating 3.8 · F3 38 Hz · Max SPL 122 dB at 1 kHz · Min impedance 3.4 Ω · Sensitivity 93.5 dB

Drivers

• Beyma 18WRS600 (8 Ohm) (mid_woofer)
• Scan-Speak 38WE/8582T00 (woofer)
• BlieSMa M74D-6 (tweeter)

Enclosure

Baffle 570 × 1126 mm
