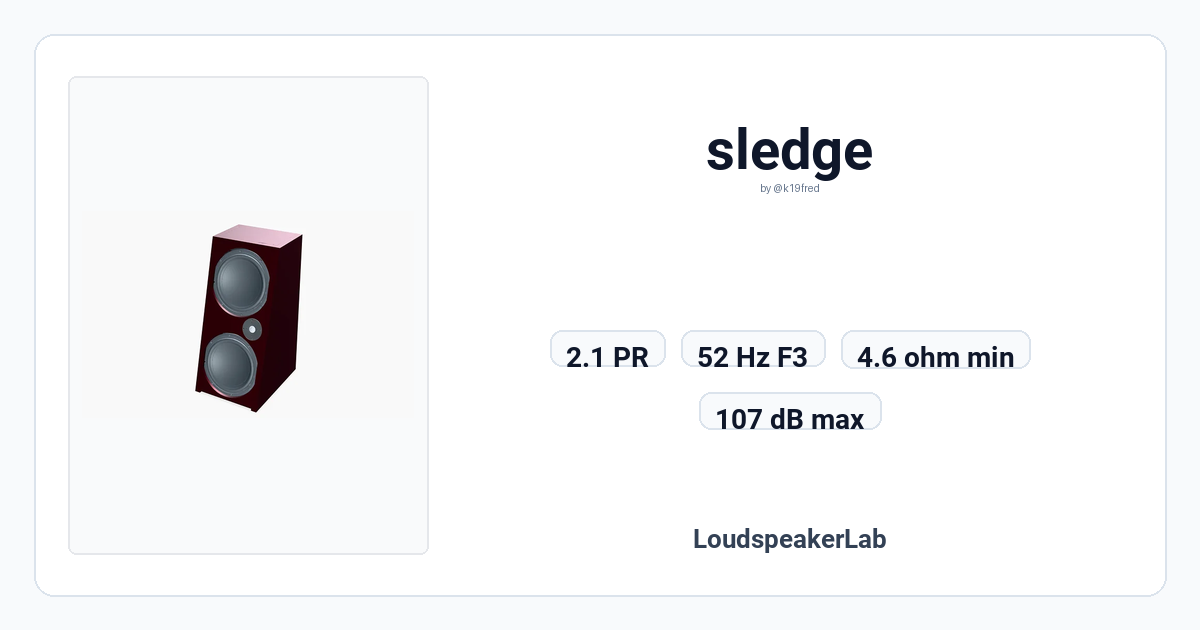

sledge - LoudspeakerLab Design

Design summary

Preference rating 2.1 · F3 52 Hz · Max SPL 107 dB at 1 kHz · Min impedance 4.6 Ω · Sensitivity 83.6 dB · Estimated cost USD 277

Drivers

• Dayton Audio SIG270-4 (woofer)
• Dayton Audio SIG270-4 (fullrange)
• GRS PT2522C-4 (tweeter)

Enclosure

Baffle 305 × 654 mm
