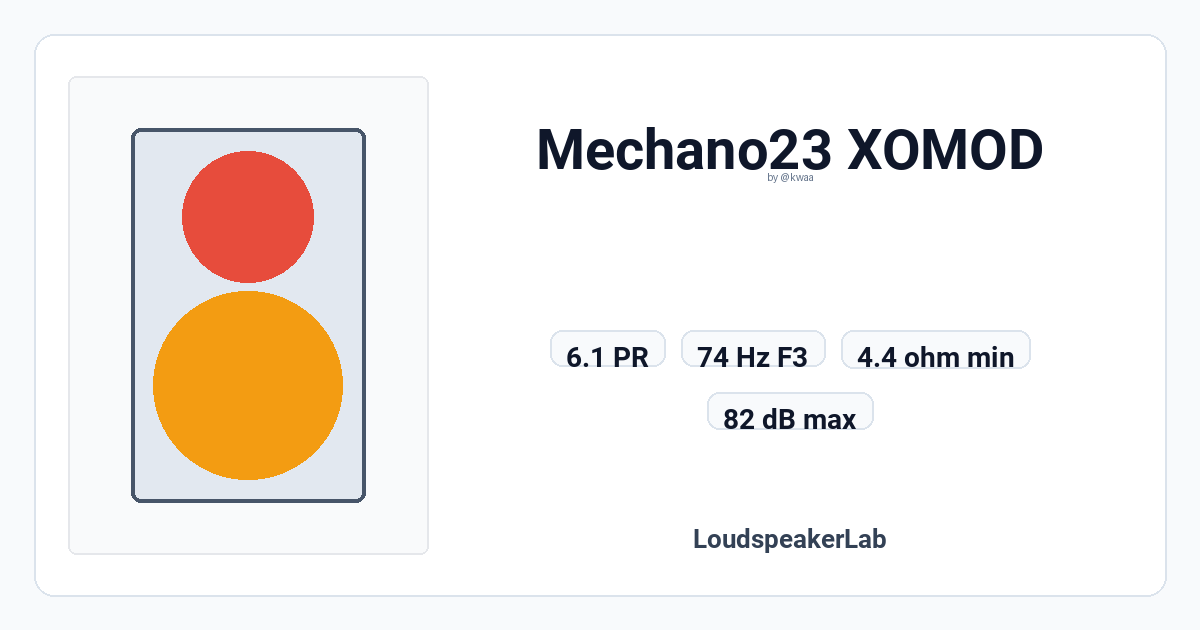

Mechano23 XOMOD - LoudspeakerLab Design

Design summary

Preference rating 6.1 · F3 74 Hz · Max SPL 82 dB at 1 kHz · Min impedance 4.4 Ω · Sensitivity 63.2 dB · Estimated cost USD 206

Drivers

• SB Acoustics SB13PFCR25-04 - Mechano23 (woofer)
• Scan-Speak H2606/920000 - Mechano23 (tweeter)

Enclosure

Baffle 186 × 298 mm
