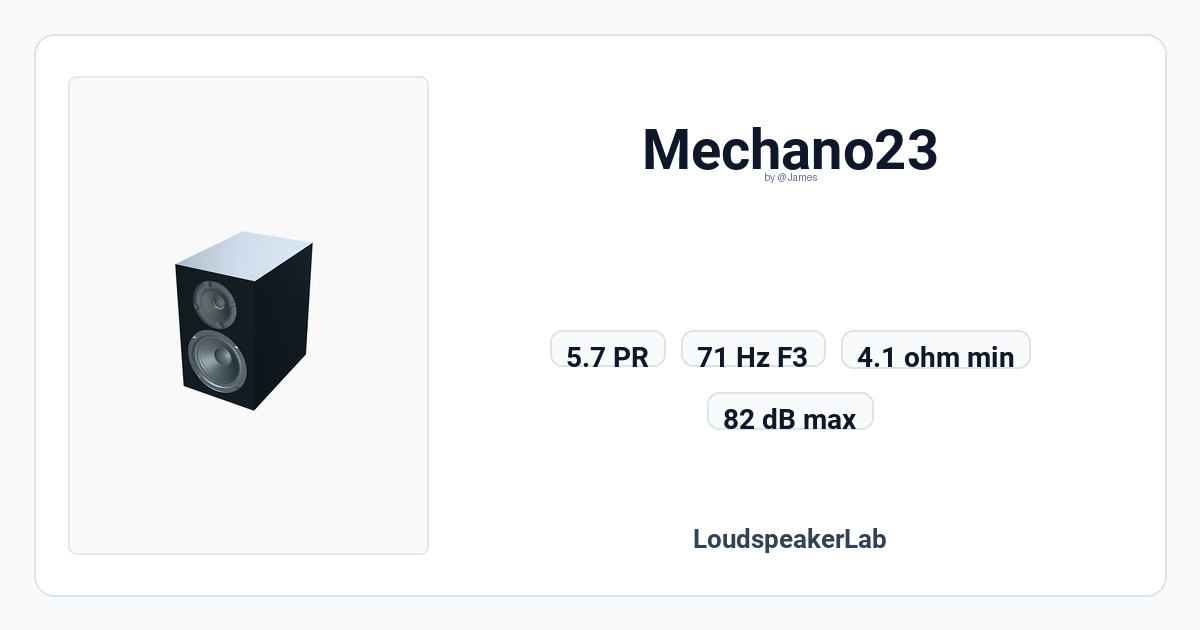

Mechano23 - LoudspeakerLab Design

Design summary

Preference rating 5.7 · F3 71 Hz · Max SPL 82 dB at 1 kHz · Min impedance 4.1 Ω · Sensitivity 63.7 dB · Estimated cost USD 156

Drivers

• SB Acoustics SB13PFCR25-04 - Mechano23 (woofer)
• Scan-Speak H2606/920000 - Mechano23 (tweeter)

Enclosure

Baffle 186 × 298 mm
