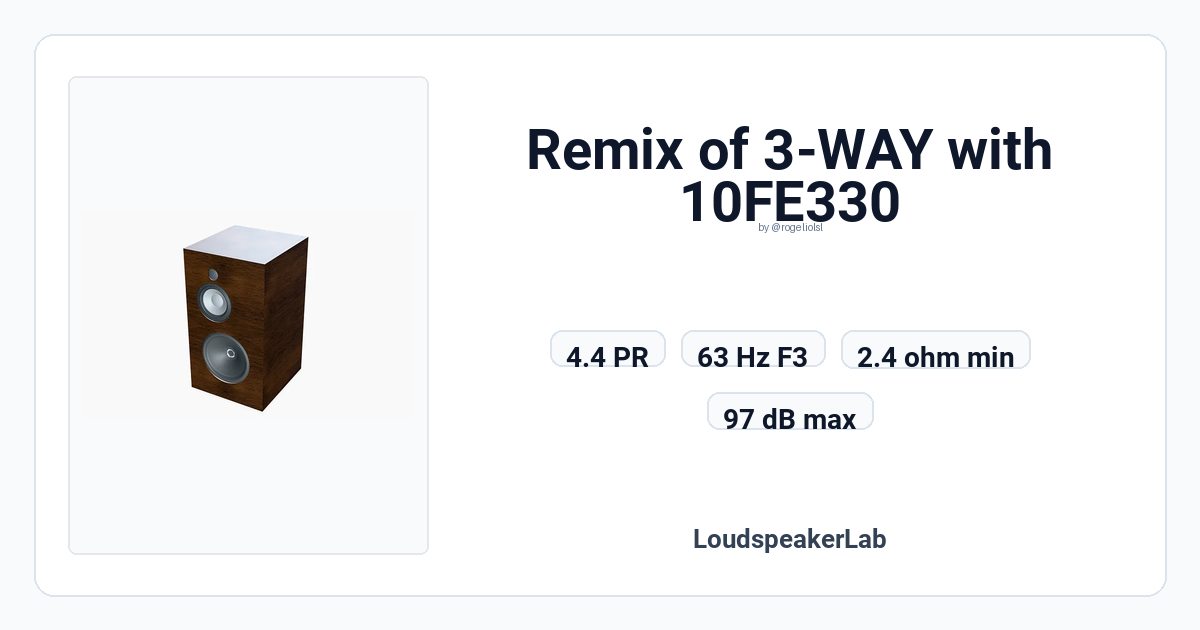

Remix of 3-WAY with 10FE330 - LoudspeakerLab Design

Design summary

Preference rating 4.4 · F3 63 Hz · Max SPL 97 dB at 1 kHz · Min impedance 2.4 Ω · Sensitivity 89.6 dB · Estimated cost USD 210

Drivers

• FaitalPRO 10FE330 (8 Ohm) (woofer)
• Grs 6PT-8 (midrange)
• Dayton Audio ND25TA-4 (tweeter)

Enclosure

Baffle 356 × 641 mm
