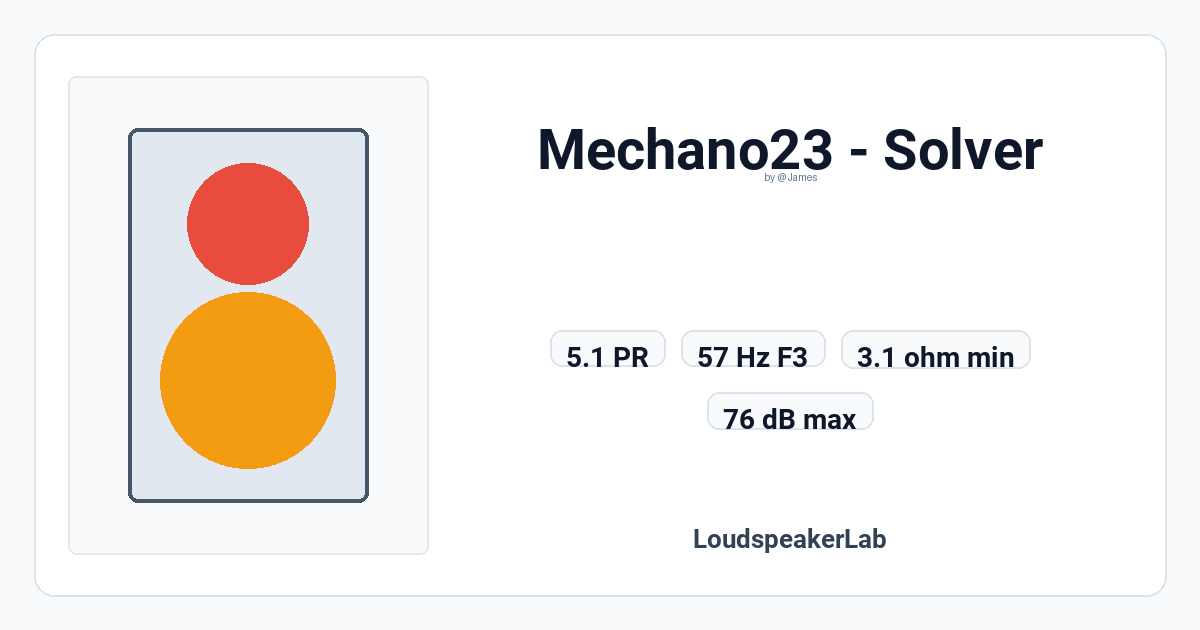

Mechano23 - Solver - LoudspeakerLab Design

Design summary

Preference rating 5.1 · F3 57 Hz · Max SPL 76 dB at 1 kHz · Min impedance 3.1 Ω · Sensitivity 63.7 dB · Estimated cost USD 150

Drivers

• Scan-Speak H2606/920000 - Mechano23 (tweeter)
• SB Acoustics SB13PFCR25-04 - Mechano23 (woofer)

Enclosure

Baffle 206 × 320 mm
